- BTV Heating Cable for Freeze Protection (under 60℃ Max. Process Temperature)
- 1. Product Overview
-
TEMPERATURE RATING Maximum maintain or continuous exposure temperature(power on)
65℃
Maximum intermittent exposure temperature, 1000 hours (power on or off)
85℃
Minimum installation temperature
-40℃

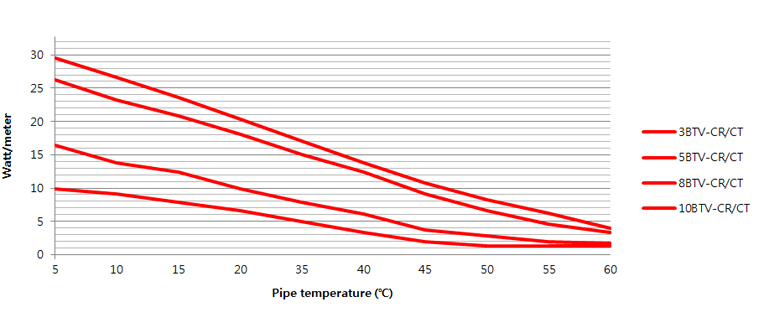

- 2. Nominal Power Output Rating on Metal Pipes @ 220V / 240V
- 3. Maximum Circuit Lengths based on Circuit Breaker Size
-
3 BTV-CR/CT
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
at start-up
15A
20A
30A
40A
15A
20A
30A
40A
10℃
101
101
101
101
201
201
201
201
-18℃
61
81
101
101
120
162
201
201
-29℃
53
72
101
101
107
142
201
201
-40℃
47
62
94
101
94
125
189
201
5 BTV-CR/CT
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
at start-up
15A
20A
30A
40A
15A
20A
30A
40A
10℃
70
82
82
82
140
165
165
165
-18℃
43
58
82
82
87
116
165
165
-29℃
38
50
76
82
76
101
152
165
-40℃
34
44
67
82
67
90
134
165
8 BTV-CR/CT
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
at start-up
15A
20A
30A
40A
15A
20A
30A
40A
10℃
46
61
64
64
91
122
128
128
-18℃
30
40
61
64
61
81
122
128
-29℃
26
35
53
64
53
72
107
128
-40℃
24
32
47
64
47
64
96
128
10 BTV-CR/CT
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
at start-up
15A
20A
30A
40A
15A
20A
30A
40A
10℃
37
49
55
55
73
96
110
110
-18℃
24
34
49
55
49
66
99
110
-29℃
21
29
43
55
44
58
87
110
-40℃
20
26
38
52
38
52
78
104
- B. XTV Heating Cable for Freeze Protection (above 60℃ Max. Process Temperature)
- 1. Product Overview
-
TEMPERATURE RATING Maximum maintain or continuous exposure temperature(power on)
121℃
Maximum intermittent exposure temperature, 1000 hours (power on or off)
215℃
Minimum installation temperature
-40℃

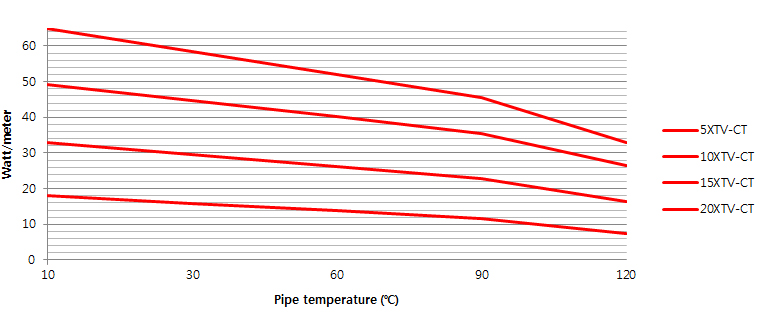

- 2. Nominal Power Output Rating on Metal Pipes @ 220V / 240V
- 3. Maximum Circuit Lengths based on Circuit Breaker Size
-
5 HXTV
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
at start-up
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
10℃
55
73
110
117
117
110
146
219
233
233
-18℃
49
64
98
117
117
96
128
191
233
233
-29℃
46
61
93
117
117
90
120
181
233
233
-40℃
44
59
88
117
117
87
116
174
232
233
10 HXTV
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
at start-up
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
10℃
34
44
67
82
82
67
90
134
165
165
-18℃
29
40
59
79
82
59
79
117
157
165
-29℃
29
38
58
76
82
56
75
113
151
165
-40℃
27
37
55
73
82
53
72
108
143
165
15 HXTV
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
at start-up
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
10℃
23
30
46
61
67
46
61
91
122
136
-18℃
20
27
41
55
67
40
53
81
108
134
-29℃
20
26
40
52
66
38
50
76
102
128
-40℃
18
24
38
50
62
37
49
73
98
123
20 HXTV
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
at start-up
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
10℃
18
24
37
49
58
35
46
70
93
116
-18℃
15
21
32
43
55
30
41
62
84
105
-29℃
15
20
30
41
52
30
40
61
81
101
-40℃
15
20
30
40
50
29
38
58
78
98
- C. VPL Heating Cable(Power-Limiting) for Temperature Maintenance
- 1. Product Overview
-
TEMPERATURE RATING Maximum exposure temperature (power off) 260℃
Minimum installation temperature
-40℃
-
Maximum Continuous maintain (power on) temperature table
CABLE
120V
208V
230V
240V
277V
480V
5VPL1-CT
230℃
10VPL1-CT
205℃
15VPL1-CT
170℃
20VPL1-CT
150℃
5VPL2-CT
235℃
230℃
230℃
225℃
10VPL2-CT
220℃
210℃
205℃
200℃
15VPL2-CT
210℃
190℃
170℃
115℃
20VPL2-CT
150℃
150℃
150℃
5VPL4-CT
230℃
10VPL4-CT
205℃
15VPL4-CT
170℃
20VPL4-CT
150℃

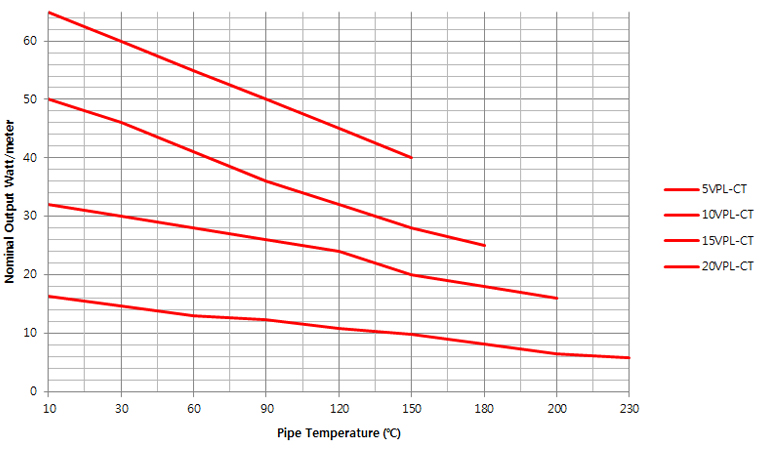

- 2. Nominal Power Output Rating on Metal Pipes @ 220V / 240V
- C. VPL Heating Cable(Power-Limiting) for Temperature Maintenance
-
VPL 5W - MAXIMUM CIRCUIT LENGTHS BASED ON CIRCUIT BREAKER SIZE
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
480V
at start-up
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
10℃
260
79
107
113
113
113
160
209
226
226
226
320
418
451
451
-18℃
240
73
99
113
113
113
148
197
226
226
226
296
393
451
451
-29℃
235
72
96
113
113
113
143
191
226
226
226
287
381
451
451
-40℃
225
69
93
113
113
113
139
186
226
226
226
277
372
451
451
VPL 10W - MAXIMUM CIRCUIT LENGTHS BASED ON CIRCUIT BREAKER SIZE
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
480V
at start-up
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
10℃
40
53
79
79
79
79
107
160
160
160
158
213
320
320
320
-18℃
37
50
75
79
79
75
99
149
160
160
149
198
299
320
320
-29℃
37
49
73
79
79
72
96
145
160
160
143
192
290
320
320
-40℃
35
47
70
79
79
70
94
142
160
160
140
189
283
320
320
VPL 15W - MAXIMUM CIRCUIT LENGTHS BASED ON CIRCUIT BREAKER SIZE
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
480V
at start-up
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
10℃
26
35
53
66
66
53
70
107
131
131
107
140
213
262
262
-18℃
24
34
50
66
66
50
67
99
131
131
10
134
198
262
262
-29℃
24
32
49
66
66
49
66
98
130
131
98
131
195
259
262
-40℃
23
30
47
64
66
47
64
94
126
131
94
128
189
253
262
VPL 20W - MAXIMUM CIRCUIT LENGTHS BASED ON CIRCUIT BREAKER SIZE
Ambient
Maximum circuit Length (in Meter) per circuit breaker
temperature
120V
240V
480V
at start-up
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
15A
20A
30A
40A
50A
10℃
20
26
40
53
56
40
53
79
107
113
79
107
158
213
226
-18℃
18
26
38
50
56
38
50
76
101
113
76
101
152
201
226
-29℃
18
24
37
49
56
37
49
75
99
113
73
98
149
198
226
-40℃
18
24
37
49
56
35
47
73
98
113
70
94
146
195
226
