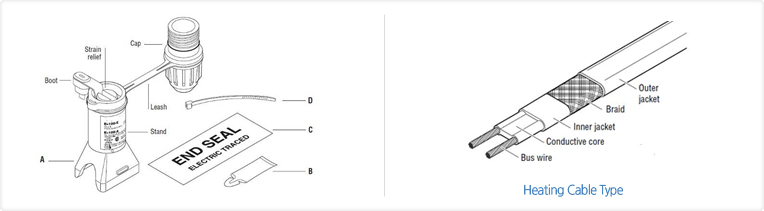

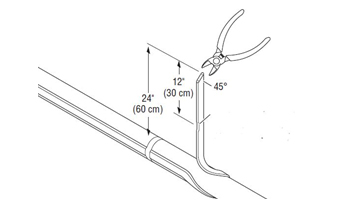

∙Allow approximately 24”(60cm) of heating cable for installation.
∙Cut off heating cable end at about 45° for easier insertion.
2

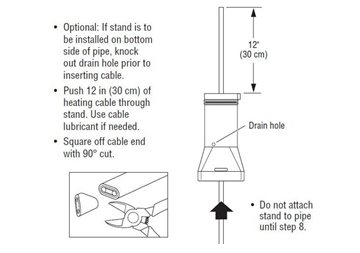

∙Push 12”(30cm) of heating cable through stand.
∙Use cable lubricant if needed.

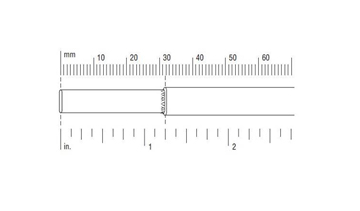

∙Square off cable end with 90° cut.
3

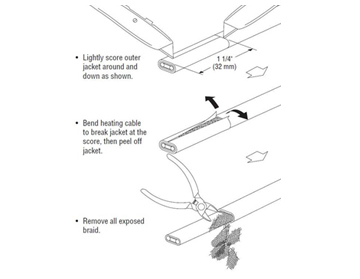

∙Lightly score outer jacket around and down as shown.
∙Bend heating cable to break jacket at the score, then peel off jacket.
∙Remove all exposed braid.
4

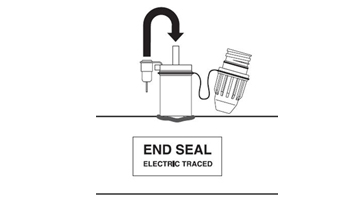

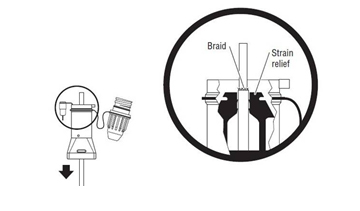

Pull heating cable back through bottom of end seal stand until braid is just visible above strain relief.
∙. Use cable lubricant if needed.
5

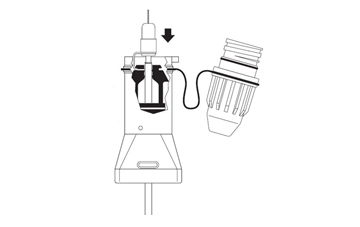

∙Push boot onto the end of the heating cable until it bottoms out. CAUTION : Health Hazard. Wash hands after contact with sealant.
6

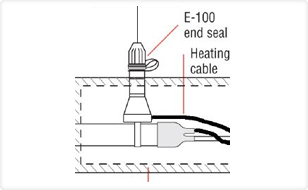

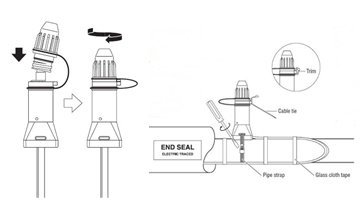

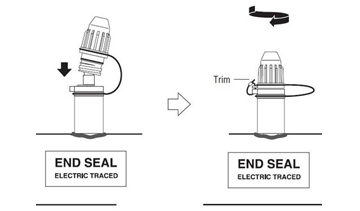

∙Fasten end seal to pipe with strap.
∙Do not pinch heating cable.
∙Install cable tie.
∙Loop and tape extra heating cable to pipe
Apply insulation and cladding.
∙Fasten end seal label to insulation.
E-100-A : Re-entry Instructions
1
∙Turn off power.

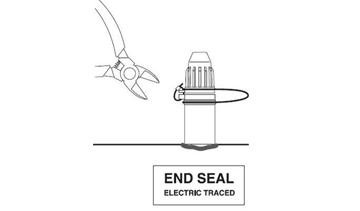

∙Clip cable tie and remove.
2

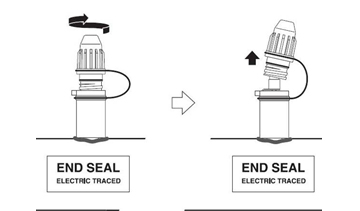

∙Unscrew cap from end seal stand.
3

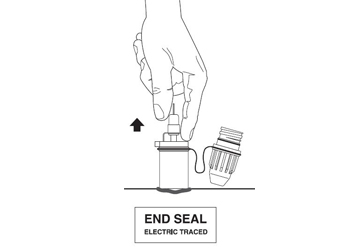

∙Grab black ring and remove boot. CAUTION :Health Hazard. Wash hands after contact with sealant.
4

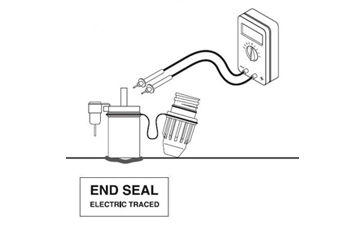

∙Test
5
∙Inspect boot.
∙If boot is damaged or sealant appears dry or missing, replace boot or re-install boot.
6
Install cap : tighten until the slot on the cap and the slot on the stand align.
∙Install new cable tie
